ROCK BOLT PLATES

Plates are fastening accessories designed to support the anchoring bolt against
the rock or other elements such as mesh.

The plate must control and distribute deformation by generating a confinement
action, as the bolt is subjected to tension and therefore acts as a support element
for rock deformation.

Distribution plates may have galvanized coating to offer greater durability in
environments that cause steel corrosion. Commonly used in support bolts, Onix Underground
offers a wide variety of distribution plates.

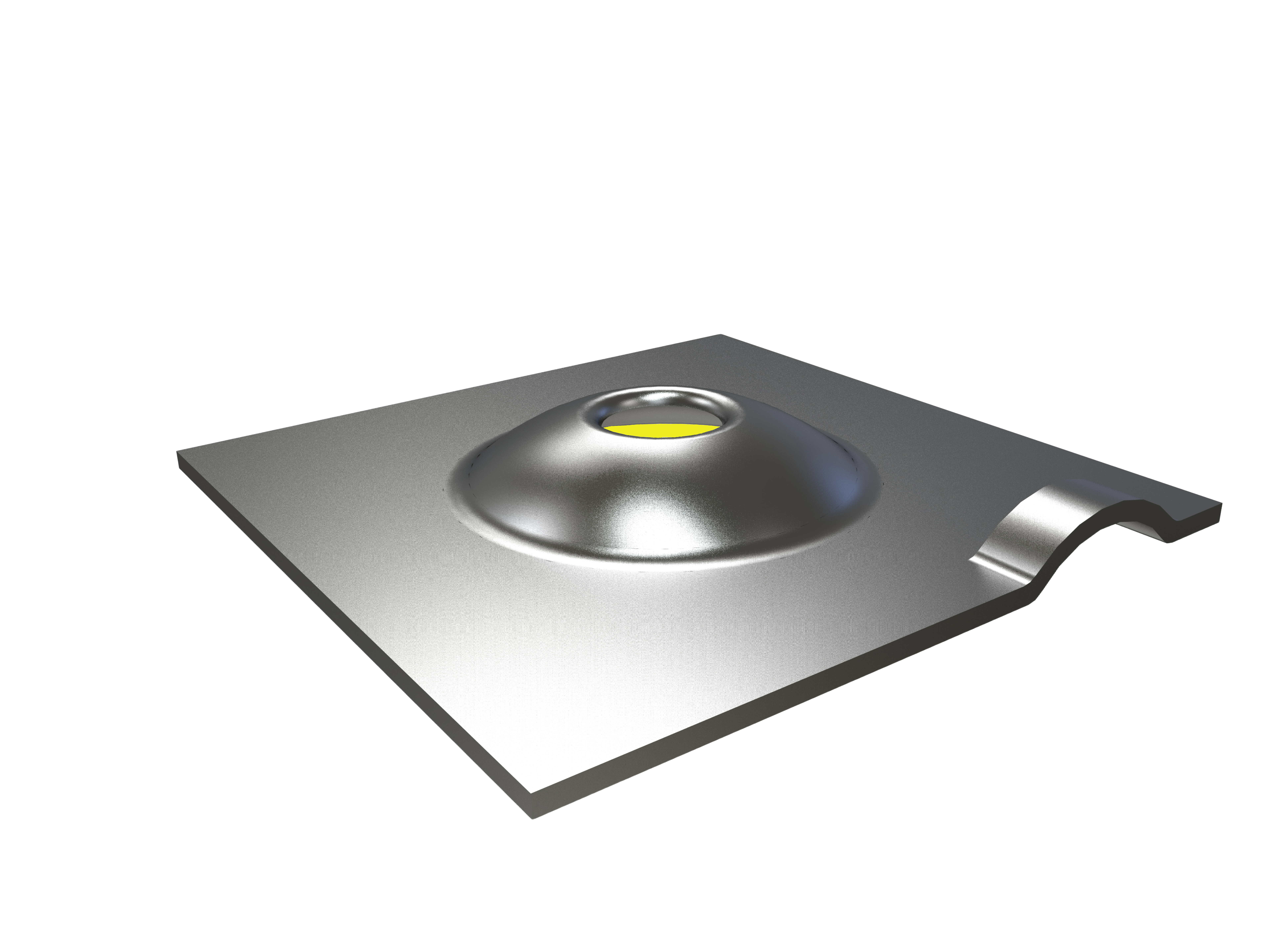

Placa sostenimiento Onixunderground

ADVANTAJES OF ITS USE

Provides uniform bolt support

Can secure other elements such as mesh

Controls ground deformation

Facilitates bolt installation when they are not aligned perpendicular to the ground

“`

FIELDS OF APPLICATION

Rock bolting

Anchoring systems

Rock repair

Equipment installation

TECHNICAL PROPERTIES

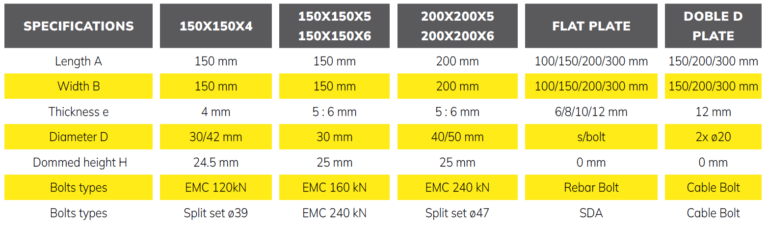

Bolts plates-Placas de reparto

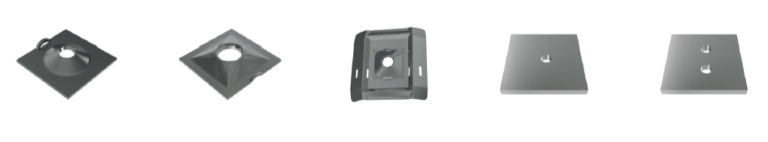

Plates | Placas de reparto

We have the manufacturing capacity to produce any type of plate according to the specific needs of each client.

Distribution plates can have round or slotted holes.

Material grades available in S275JR and S355JR. Other grades available upon request.
