REBAR BOLTS

It is a corrugated steel bar for concrete reinforcement, with one end threaded to a length of 150-200 mm to install a nut with an anchoring plate, and the other end cut at a 45-degree angle for insertion into the hole. It consists of a main body with a series of longitudinal grooves (corrugations) that increase its anchoring capacity in the surrounding rock.

The 45-degree cut inner end facilitates its insertion, and the threaded outer end tensions the bolt and the plate using a nut, which can be hexagonal or round.

They can be mounted with resin cartridges or cement mortar.

Rebar Onix Underground

ADVANTAGES OF ITS USE

They can be made very long to reach firmer areas

High load capacity

The corrugated bar generates strong adherence with concrete or grout

FIELDS OF APPLICATION

Rock support and stabilization

Underground mining and tunnel reinforcement

Slope stabilization and structural anchoring

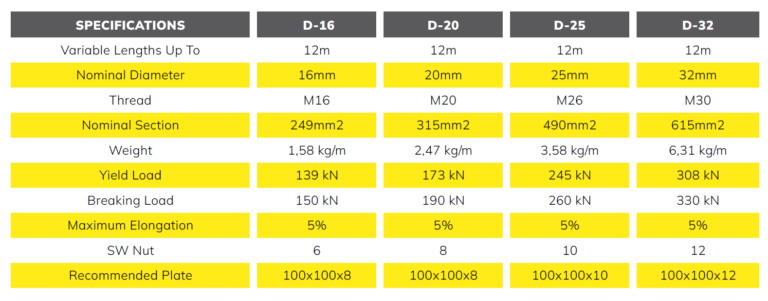

TECHNICAL PROPERTIES OF THE REBAR BOLTS

Rebar bolt technical properties onixunderground
